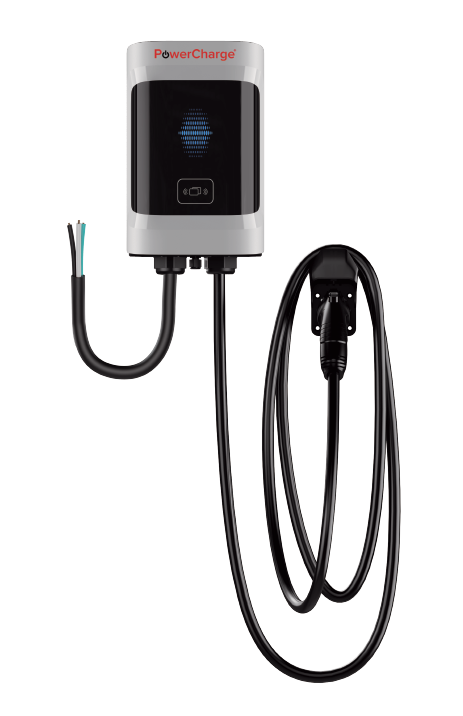

PowerCharge Easy-Charge 48A Home EV Charger
$779.00
The newest generation of home charging from a trusted brand. The PowerCharge Easy-Charge 48A charger combines the reliability of a trusted name in commercial charging, with the technology tuned for home use. Available in J1772 and NACS plug types, with a 25 ft cable. Hardwire pigtail installation only. Requires a 60A breaker at 208/240V. Includes 2 year manufacturer parts warranty.
Quantity
Tech Specs
PC-EC48-01 - 208/240VAC 60Hz 48A, SAE J1772, 11.52kW
PC-EC48-02 - 208/240VAC 60Hz, 48A, SAE NACS, 11.52kW
Hardwired via pigtail :L1/L2/PE | L/N/PE
Firmware Upgrade Local update possible
RFID [supports ISO14443-compliant type A, mifare one (MF1) cards]
Flash Rom(16M-byte)
CCID20
Over voltage protection
Under voltage protection
Over-current protection
Over load protection
User Authentication
Memory
Real Time Clock
Protection Function
Ground protection
Over-temp protection
Surge protection 6 kV @ 3,000A
Fault self-test7
Enclosure protection: type 4,IK08
Operating emperature: -30 ~ 50°C(-22~122°F)
Storage temperature: -40 ~ 75°C(-40 to 167°F)
Humidity: up to 95%, non-condensing
Altitude: ≤2000m
Cooling method: natural cooling
Environmental
Net weight: 5.7 KG(Hardwired via pigtail)
Product outline size: H*W*D (274.66 mm *178.73 mm *115 mm)
Cable length: 25ft
Safety regulations: ETL(UL2231 UL2594 UL1998 UL991)
Warranty 2 Years
Energy efficiency: Energy Star (Requirements for EVSE Version 1.0, 1.1, and 1.2
